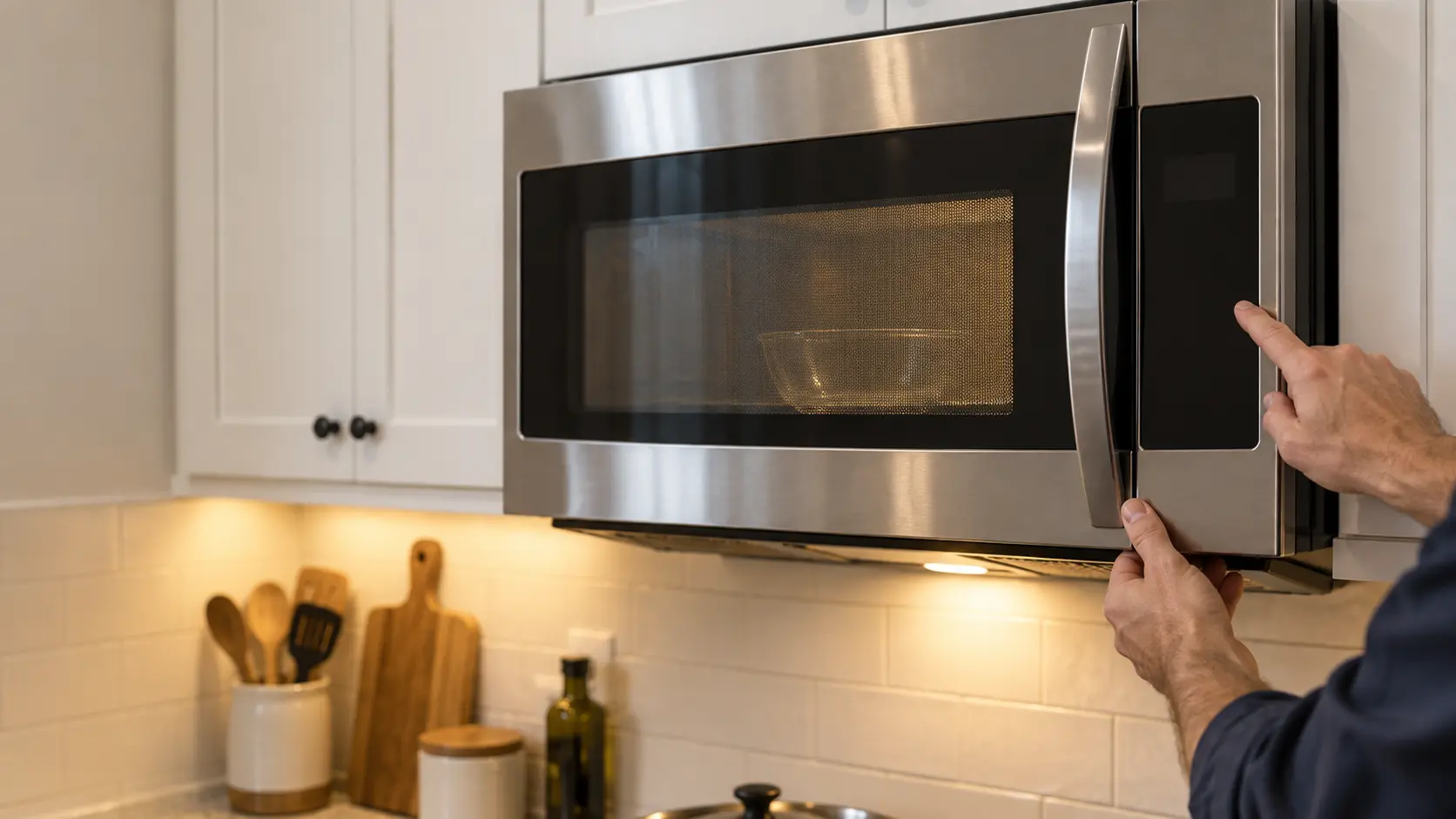

A stainless microwave hood combination mounted under white shaker wall cabinets in a US kitchen, the microwave's side-hinged door closed with its dark mesh window, a plain glass bowl visible faintly on the glass turntable inside the microwave, the lamp on its underside glowing softly onto a cooking surface that is cropped and out of focus at the bottom edge.

Microwave Hood Combination Repair

The microwave that hangs from the wall cabinets above the burners, heating food in its cavity while its own fan, light and filters handle the steam and grease rising from the pans beneath it.

(844) 393-5858

Mon–Sat, 8am–8pm

  • 4 things that fail on it
  • 15 makes build it
  • 6 problems it shows

Book a visit

Three short steps, about a minute.

or call (844) 393-5858

Is yours
a hood combination?

A microwave hood combination, sold by most makers as an over-the-range microwave, does two jobs from one steel box bolted to a plate on the wall and hung from the cabinet overhead. Its cavity reheats and defrosts like any microwave; its underside carries a pair of mesh grease filters, a cooktop light and an exhaust fan that either pushes air outdoors through a duct or passes it through a charcoal filter and back into the kitchen. The electronics sit a foot or two above open flames and boiling pots, which is why these models carry a thermal switch that turns the fan on by itself when the heat underneath climbs, and why a clogged filter can make the whole unit run hot. Its power cord does not reach a wall outlet at counter height: it passes through a hole into the cabinet above and plugs in there, out of sight. Taking one down is a two-person job with the bolts through the cabinet floor and the weight hanging on a hinge of tabs, so a visit starts with everything that can be reached from the front and the underside before anyone lifts it off the wall.

A view from below of a stainless microwave hood combination mounted under wall cabinets in a US kitchen, one of the microwave's mesh grease filters slid out and held in a technician's hand, the second filter still in place beside the small lamp on the underside of the microwave, the cooking surface below cropped out of the frame. What fails on a microwave hood combination

How to tell

01

It hangs under a run of wall cabinets directly above the burners, with its bottom edge roughly level with the tops of your cheekbones.
02

The underside has two slotted or mesh metal filters and a small lamp that lights the pots below, controlled by keys marked for the fan and the light.
03

Opening the cabinet above shows a cord coming up through a round hole and a plug in an outlet, and often a duct or a vent grille on top.
04

The front carries a door that swings on a side hinge like a countertop model, but there is no gap around the cabinet: it fills the space between the wall cabinets.

Not yours?Built-in microwaveMicrowave drawerCountertop microwave

What fails
on this design.

On a microwave hood combination: grease filters packed solid, an exhaust fan that slows or quits, the lamp under the cabinet, heat reaching the electronics.

The problems it shows

Grease filters packed solid

Every pan of bacon sends a haze into the mesh, and after months without a soak in hot soapy water the openings close up. The fan then strains, the air under the unit stays smoky, and the electronics above lose part of the airflow that keeps them cool.

An exhaust fan that slows or quits

The blower motor sits behind the top grille and runs every time steam rises below. Its bearings dry out, a speed relay on the board sticks, or the heat switch that starts it on its own wears, and the kitchen fills with haze while the microwave still cooks.

The lamp under the cabinet

The cooking-area light lives in the hottest, greasiest spot in the kitchen. Bulbs fail often, but so do the sockets and the small cover lenses that crack after years of heat, and on some models the light shares a relay with the fan.

Heat reaching the electronics

A tall stockpot on a high flame, a clogged filter and a fan left off can bake the control board and the door switches from below. A unit that stops mid-cycle, flickers its display or trips its thermal cutout often has heat from the cooking below behind it.

Getting at it,
and whether to.

Filters, the lamp, the turntable and the door are all reached from the front and the underside, so much of the work never takes the unit off the wall.

What repairs cost

On the visit

  1. Deeper repairs mean lifting it off its mounting plate: the bolts come out from inside the cabinet above, and the cord is unplugged there first, so clear that shelf before the visit.
  2. Leave the burners below cold and bare for an hour ahead of the appointment; the technician stands at the burner grates and works overhead.
  3. Never open the cabinet of the microwave yourself to chase the problem: the capacitor inside keeps a dangerous charge long after the plug is pulled, and the work belongs to someone equipped to discharge it.

Repair or replace

A microwave hood combination costs more to replace than its sticker suggests, because a new one has to match the mounting plate, the duct outlet and the cabinet width, and the old one comes down with two people and a cabinet to empty. A filter, a lamp, a fan motor, a door switch or a turntable motor is nearly always worth fitting. A failed magnetron or control board on an entry-level unit past ten years old is where the numbers can cross, and you see both before deciding.

Book a visit for a microwave hood combination

The problems
it shows.

On a microwave hood combination, most often microwave vent fan not pulling steam.

All problems
A stainless microwave hood combination under wall cabinets with its side-hinged door with a mesh window closed, soft steam rising from below past the front of the microwave and drifting up against the cabinet doors, one mesh grease filter under the unit dark with grease.

Microwave Vent Fan Not Pulling Steam

6 causes, cheapest first

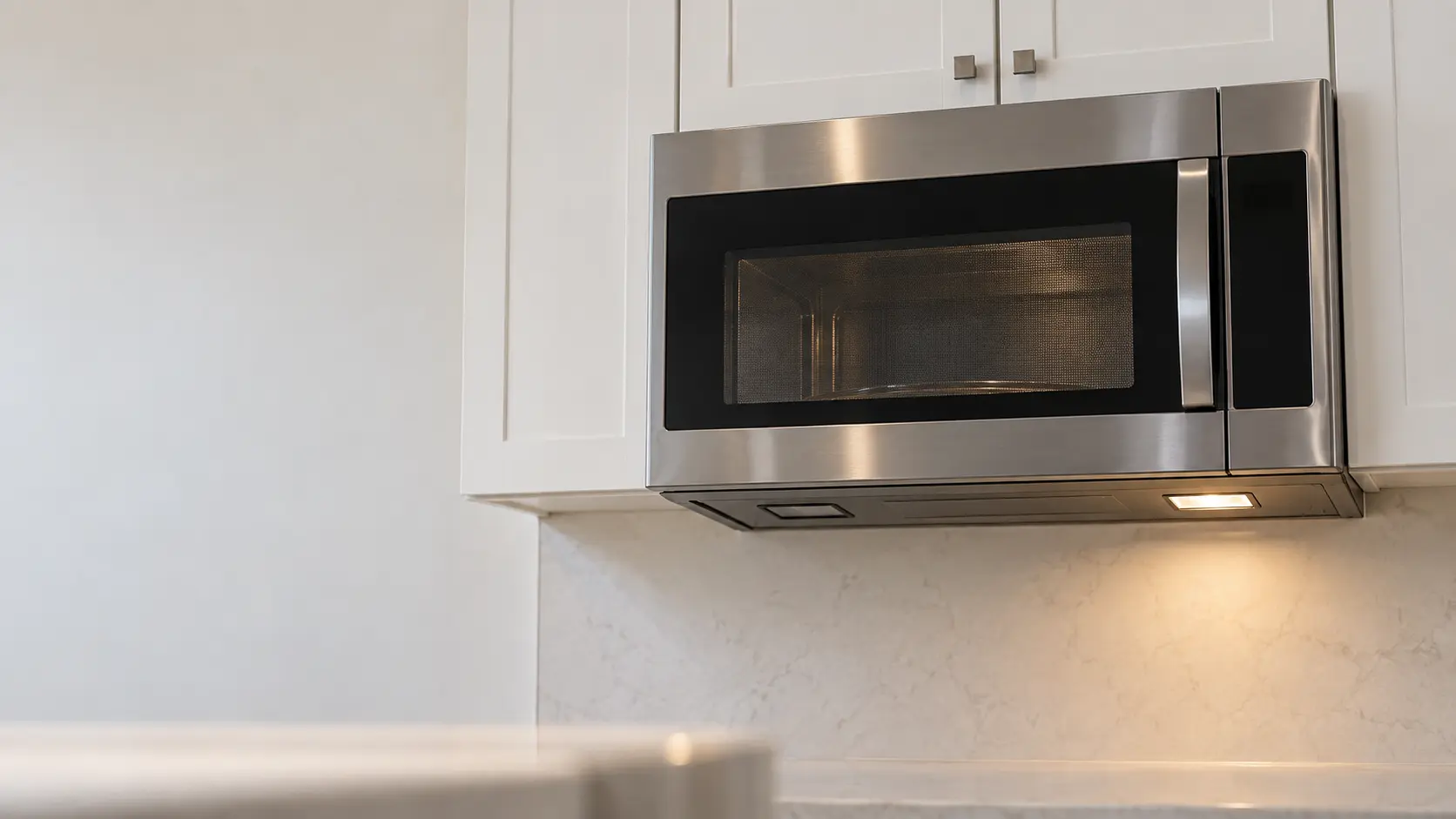

 A stainless microwave hood combination under white wall cabinets seen from slightly below, one of the two small task lights on its underside dark and the other lit, its side-hinged door with a mesh window closed and the microwave cavity dim behind it.

Microwave Light Out Inside or Underneath

6 causes, cheapest first

 A built-in stainless microwave in a trim kit set into a kitchen cabinet, its side-hinged door with a mesh window open and a plain glass measuring cup of water standing on the glass turntable inside the microwave cavity, the cavity lamp lit, a quiet kitchen around it.

Microwave Runs but Food Stays Cold

7 causes, cheapest first

 A stainless microwave hood combination mounted under wall cabinets, seen straight on through its closed side-hinged door with a mesh window, one small bright blue spark flashing inside the dim microwave cavity near the side wall beside a plain glass bowl on the glass turntable. Stop using it

Sparks Flashing Inside a Microwave

6 causes, cheapest first

 Inside view of a countertop microwave with its side-hinged door with a mesh window open, the round glass turntable lifted slightly off center with its plastic roller ring and small center coupler visible on the microwave cavity floor, a plain white plate set aside on the counter beside it.

Glass Tray Not Turning in a Microwave

6 causes, cheapest first

 Close view of the membrane touchpad beside the side-hinged door with a mesh window of a stainless microwave hood combination, the keypad surface slightly bubbled and worn at a few keys with no characters printed on them, a faint film of steam on the edge of the microwave front.

Microwave Touchpad Ignores Key Presses

6 causes, cheapest first

Who builds
a hood combination.

15 of the makes on this site build a microwave hood combination. Each mark opens that make's own page.

All 18 brands

Microwave hood combination repair,
where we come out.

9 metros, each with its own page.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A family warming plates of food at a built-in microwave in a bright kitchen
For the heart of your home.

Questions about
microwave hood combinations.

Why does the fan on my microwave hood combination turn on by itself?
Most of these units carry a heat sensor on the underside that starts the fan when the burners below get hot, to protect the electronics. It keeps running until that area cools, and on many models it cannot be switched off with the fan key while the heat lasts. If it starts with the burners off and cold, the sensor or the board is worth a look.
How often should the grease filters under the microwave be cleaned?
About once a month in a kitchen that cooks every day, more often if you fry. Soak them in hot water with dish soap or run them through a dishwasher cycle, and let them dry before sliding them back. A recirculating unit also has a charcoal filter that cannot be washed and is replaced every six months to a year.
Can I unplug a microwave hood combination before a repair visit?
Yes, and it is a good idea if it sparks, smells or trips a breaker. The plug is in the cabinet directly above the unit, usually behind dishes or spices. If you cannot reach it safely, switch off its circuit at the breaker panel instead.
Is it safe to keep cooking on the burners while the microwave above is broken?
For most problems, yes, as long as the microwave is not sparking, smoking or smelling of burning. Use a low fan setting or open a window if the fan itself has quit, and keep flames low under the unit. If the trouble is heat related, a blocked filter or a fan that has stopped, high flames make it worse.
